End Bearing Plate — Residential

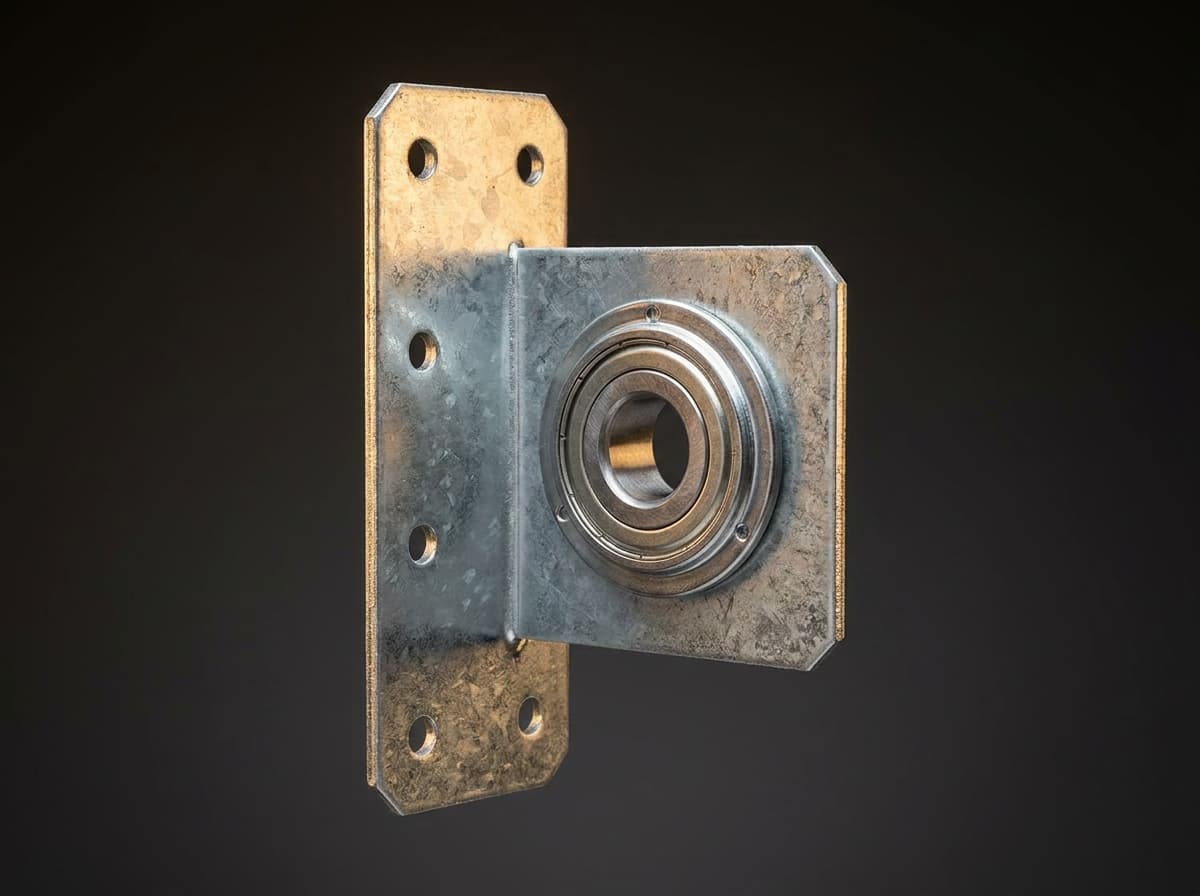

Residential end bearing plate for torsion-spring counterbalance systems. 11-gauge galvanized steel with 3⅜" shaft offset and a 1" ID × 2" OD radial flange bearing. ANSI/DASMA 102 and 103 dimensional spec; 400 lb load rating at 35,000 cycles.
Also known as
torsion end plate · end bracket · bearing plate · torsion bearing plate
Key Features
- Pre-mounted radial flange bearing
- Slotted bolt holes for installation adjustment
- Galvanization tested per production lot
- Drop-in fit on standard residential systems
Available Materials
Specifications
