Industries We Serve
Doors
Sweeps, drop seals, astragals, thresholds, perimeter & lock hardware
UL 10C / 1784
Fire + Smoke Listed
BHMA Grade 1
Commercial Cycle Rated
STC 40–55
Acoustic Seal Systems
Components for Doors
Door sweeps, automatic drop seals, astragals, thresholds, perimeter gasket sets, kerf-in foam-filled jamb seals, intumescent smoke seals, acoustic gasket systems, patio door rollers, hinges, and lock hardware components — listed to BHMA A156.22, A156.21, A156.1, UL 10B/10C, UL 1784, and NFPA 80/105 as applicable. Quality-inspected at our Plant City warehouse before shipment.
Entry doors, patio doors, sliding doors, commercial doors, fire-rated assemblies, acoustic-rated assemblies — all consume the same families of gasketing, threshold, and hardware components. SB5 sources to the listed standards (BHMA, UL, NFPA) so the components drop into existing assembly drawings.
Applications
How Our Components Are Used
Door Bottom Sweeps

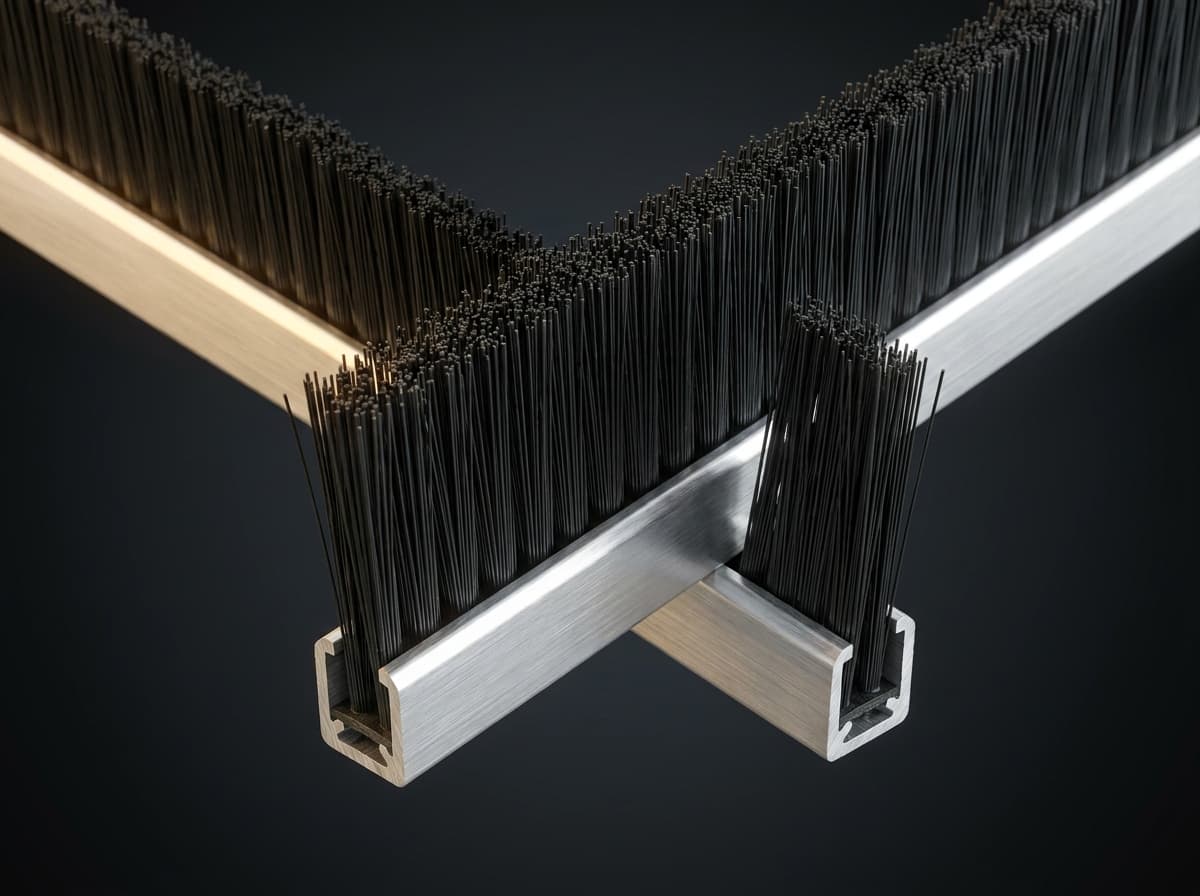

Nylon brush door sweeps (5/8″–1-1/2″ brush, 36–96″ lengths) and vinyl/EPDM blade sweeps with 6063-T5 aluminum retainer, listed to BHMA A156.22 Grade 1 / UL 10C / UL 1784 / NFPA 80/105.
Automatic Drop Seals
Mortise, semi-mortise, and surface-mount automatic door bottoms — ½″ drop range (¾″ extended) — with sponge silicone, sponge neoprene, TPV, or brush insert. BHMA A156.22 Grade 1, UL 10C fire, UL 1784 smoke, ADA-compliant low-close-force options.
Astragals & Perimeter Seal Kits
Overlapping, flat surface-applied, T-stem, and solid-metal astragals; 3-piece perimeter seal kits (header + 2 jambs); intumescent smoke seals; sponge-silicone acoustic seals for STC 40–55 systems.
Thresholds & Door Shoes
Saddle, ramped/bevel, and inserted aluminum thresholds (BHMA A156.21, ADA/ANSI A117.1); aluminum door shoes (U-channel) with vinyl, EPDM, or brush insert.
Patio Door Hardware
Center-fin patio door pile (6.9–9.7 mm backing); aluminum sliding tracks; single, tandem, and heavy commercial patio rollers (75–500 lb capacity) per AAMA 906.
Hinges & Lock Hardware
Residential and commercial hinges (BHMA A156.1 Grade 1/2, NFPA 80), spring hinges, strike plates, latch faceplates, deadbolt components, and door reinforcers/edge wraps.
Speak Your Language
We Know Your Terminology
Different industries call the same components by different names. Here's how our products map to doors terminology.
SB5 Product
Your Industry Calls It
Door Sweep
Bottom Sweep / Threshold Brush
Automatic Drop Seal
ADB / Door Bottom
Astragal
Meeting Stile / Door Edge Seal
Foam-Filled Jamb Seal
Kerf-In Weatherstrip
Perimeter Seal Kit
3-Piece Weatherseal
Technical Specifications
Key Specs for Doors
- Brush sweeps: 5/8″–1-1/2″ brush; 36/48/72/84/96″ lengths
- Drop seals: ½″ standard drop, ¾″ extended; mortise/semi-mortise/surface
- Thresholds: 3″–6″ width; 1/4″–1″ height aluminum 6063-T5
- Patio rollers: 1″–2-1/8″ wheel, 75–500 lb capacity per AAMA 906
- Hinges: BHMA A156.1 Grade 1 (2.5M cycles) and Grade 2 (1.5M cycles)
- Standards referenced: BHMA A156.22 / A156.21 / A156.1, UL 10B/10C, UL 1784, NFPA 80/105, ASTM E283/E90
Vetted Factories
Audited & qualified before any spec ships
Quality Inspected
Every run sample-checked before release
Warehoused in Florida
Plant City inventory for your spec
Samples Available
Verify on your bench before you commit
Direct From Manufacturer
Factory pricing without distributor stack
OEM Spec Reserved
Your dimensions, color & packaging on hand
Need Components for Doors?
Send us your specs, current part numbers, and expected usage. We'll quote fast and produce free verification samples tailored to your application.
